家へ > 製品 > 半自動溶接機 > Speed Weld Multi-Purpose Electronic Semi-Auto Soldering Machine

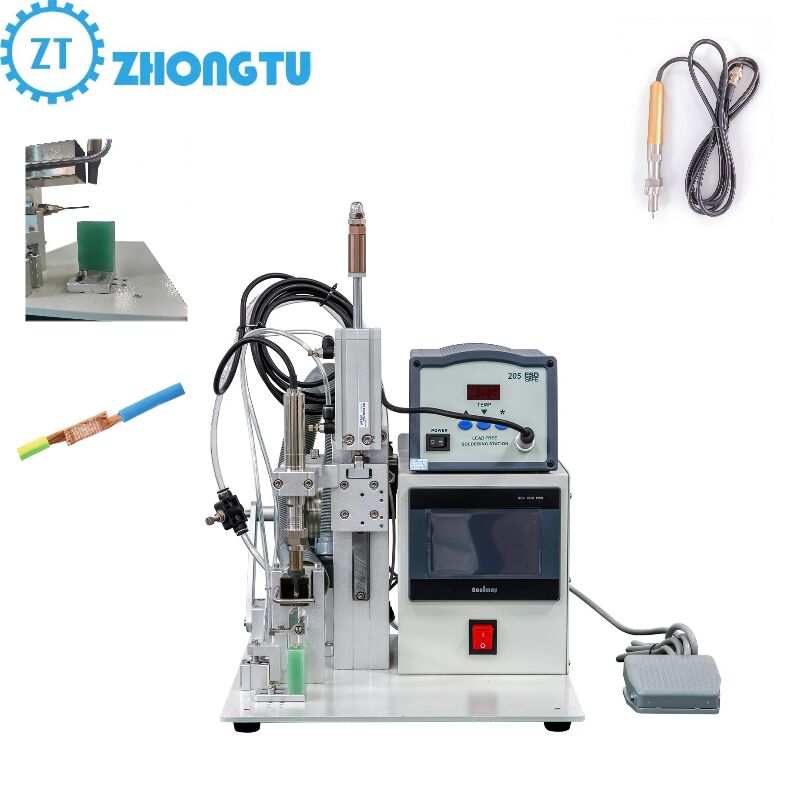

Speed Weld Multi-Purpose Electronic Semi-Auto Soldering Machine

Name: Speed Weld Multi-Purpose Electronic Semi-Auto Soldering Machine
Brand: Shenzhen Zhongtu Automation Technology Co., Ltd.
SKU: ZT-DHJ030
Price: 580.00 USD
Availability: InStock

製品詳細

起源の場所: 中国

ブランド名: ZT

証明: CE

モデル番号: ZT-DHJ030

支払いと送料の条件

最小注文数量: 1セット

価格: USD510-650/SET

パッケージの詳細: 紙箱

受渡し時間: 7〜15日

支払条件: T/T

供給の能力: 100set/月

お問い合わせ

製品詳細

製品説明

評価とレビュー

製品詳細

ハイライト:
                                                                                                                                                                                                                                                                                                                                    semi-auto soldering machine with warranty, electronic soldering machine for multi-purpose, speed weld soldering machine electronic


使用圧力:	0.5mpa	作業モード:	手動と半自動
溶接エリア:	0.5〜20mm2	輸送パッケージ:	紙箱
動作周波数:	19.6-20.2KHz	操作モード:	半自動、フットペダル制御付き
コア長さの精度:	1~20mm/±1mm	電源:	220V/110V
はんだ付け温度範囲:	200℃～450℃	制御モード:	一定した温度調整
生産性:	900~1200pcs/h	ドリブンタイプ:	電動、空圧

使用圧力:	0.5mpa
作業モード:	手動と半自動
溶接エリア:	0.5〜20mm2
輸送パッケージ:	紙箱
動作周波数:	19.6-20.2KHz
操作モード:	半自動、フットペダル制御付き
コア長さの精度:	1~20mm/±1mm
電源:	220V/110V
はんだ付け温度範囲:	200℃～450℃
制御モード:	一定した温度調整
生産性:	900~1200pcs/h
ドリブンタイプ:	電動、空圧

製品説明

Speed Weld Multi-Purpose Electronic Semi-Auto Soldering Machine

The new generation of semi-automatic soldering systems is built for electronic production, balancing accuracy and speed. With adjustable temperature and programmable profiles, they switch easily between low and high volumes, cutting takt time without sacrificing joint quality. A simple interface completes setup in minutes and displays live data; safety interlocks and a solid frame guarantee stable long-term operation. Upgrade now to bring speed, precision and versatility to your line and improve total manufacturing efficiency.

Machine Components

Soldering Iron: Detachable design with precise temperature control
Control System: Manages temperature and timing parameters
Feeder Mechanism: Automatically supplies solder wire
Work Platform: Stable surface for component placement
Cooling System: Ensures proper joint solidification

Industrial Applications

Ideal for wire harness soldering, data line connections (USB, micro USB, Type-C, HDMI), motor wires, PCB boards, LED lighting systems, electronic components, switches, and various connectors.

Product Specifications

Soldering Iron	Detachable design
Temperature Range	200-450℃
Soldering Tin Size	OD 0.6~1.2mm (saves 15% tin consumption)
Transmission	Pedal operation
Model	SA-100
Applicable Connectors	DC/RCA/TV connectors, solid plugs, etc.

Technical Parameters

Place of Origin	ShenZhen, China
Applicable Industries	Manufacturing Plant, SMT, DIP
Input air pressure	0.4-0.8Mpa
Weight	20Kg
Voltage	110-240V/50HZ Output 24V/2A
Warranty period	1 Year
Dimensions	400400500mm
Warranty of core components	3 Years
Power	160W
Temperature Accuracy	±3°

Product Images

Our Services

Pre-sale	In Sale	After Sale
Product Introduction Technical Communication Remote consulting service	Product demonstration Detailed usage instructions Customer question resolution	Video support service 1-year full equipment warranty 3-year warranty for guide rail/motor/control parts

Frequently Asked Questions

Who are we?

We are based in Guangdong, China, established in 2015, with 50-200 employees in our office.

How can we guarantee quality?

We always provide a pre-production sample before mass production and conduct final inspection before shipment.

What can you buy from us?

Soldering machines, precision spot welding machines, glue dispensers, and screw machines.

Why should you buy from us instead of other suppliers?

We provide ultra-professional service and high-performance products at competitive prices. Your success is our success.

What services can we provide?

Accepted Delivery Terms: FOB, CIF, EXW, FCA, CPT; Accepted Payment Currency: USD, EUR, HKD, CNY; Accepted Payment Type: T/T, PayPal, Cash.

What is your Warranty for the product? How do you carry it out?

We provide 1-year warranty for the unit machine and 3-year warranty for the main board. Contact us for more details.

May I buy samples from you?

Yes! You are welcome to place sample orders to test our superior quality and service.

Are you a trading company or factory?

We are a professional manufacturer of automation machines since 2015.
