Shenzhen Zhongtu Automation Technology Co., Ltd. weideng0516@126.com 86-0755-2975-2717
製品詳細
起源の場所: 中国
ブランド名: ZhongTu
証明: CE, ISO, RoHS
モデル番号: ZT-HXJ441-R
支払いと送料の条件
最小注文数量: 1
価格: 4200
パッケージの詳細: ウッドケース
支払条件: L/CT/T
供給の能力: 10
型番: |
ZT-HXJ4411-02R |
電圧: |
AC 110~230V |
現在: |
5A |
力: |
680W |
重さ: |
85kg |
寸法: |
1000*750*850mm |
はんだ線: |
0.6～1.5mmのはんだ線 |
温度精度: |
±3° |
はんだ送り速度: |
1～50mm/s |
繰り返す精度: |
±0.02mm |
暖房の温度較差: |
0～550℃ |
機械軸番号: |
5軸 |
x軸: |
400mm/2X |
Y軸: |
300mm/2Y |
z軸: |
100mm |
型番: |
ZT-HXJ4411-02R |
電圧: |
AC 110~230V |
現在: |
5A |
力: |
680W |
重さ: |
85kg |
寸法: |
1000*750*850mm |
はんだ線: |
0.6～1.5mmのはんだ線 |
温度精度: |
±3° |
はんだ送り速度: |
1～50mm/s |
繰り返す精度: |
±0.02mm |
暖房の温度較差: |
0～550℃ |
機械軸番号: |
5軸 |
x軸: |
400mm/2X |
Y軸: |
300mm/2Y |
z軸: |
100mm |

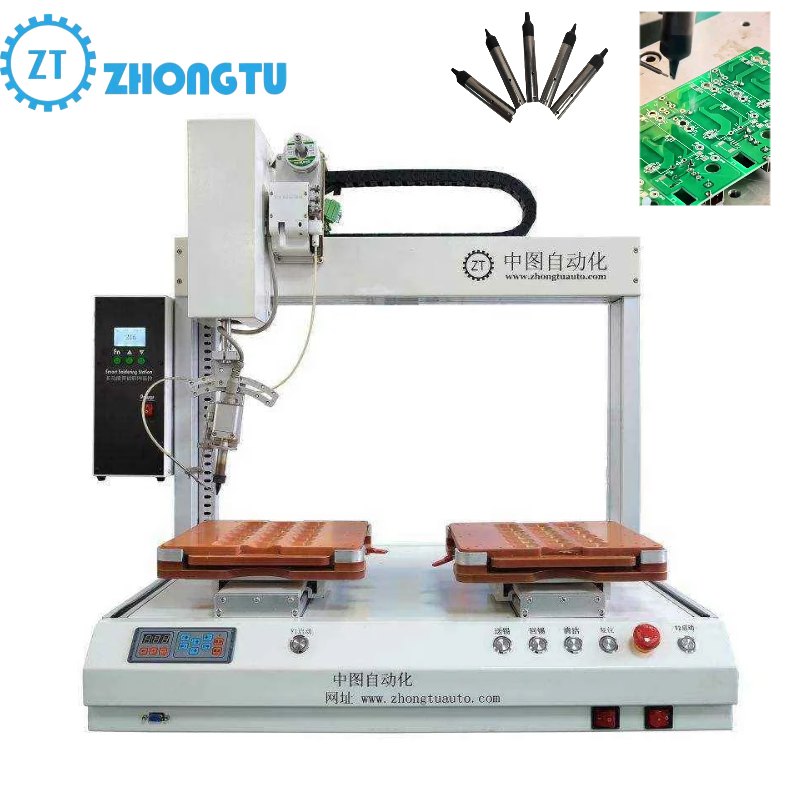

Advanced automatic soldering robot designed for precision soldering applications in manufacturing plants, SMT, and DIP processes. Features dual soldering heads and rotation axis for enhanced flexibility and productivity.
| Parameter | Specification |
|---|---|
| Place of Origin | Shenzhen, China |
| Applicable Industries | Manufacturing Plant, SMT, DIP |
| Weight | 85Kg |
| Voltage | 220/110V 50~60Hz |
| Dimensions | 1000*750*850mm |
| Power | 680W |
| Current | 5A |
| Temperature Accuracy | ±3° |
| Solder Wire | 0.6~1.5mm solder wire |
| Warranty Period | 1 Year |
| Core Components Warranty | 3 Years |
| Model | ZT-HXJ041R | ZT-HXJ441-R | ZT-HXJ4411-02 | ZT-HXJ4411-02R | Customization |
|---|---|---|---|---|---|
| Solder Power | 200W | 200/400w 600W | 200/400W | 200/400/600W | Available |
| X Axis | 400mm | 400mm | 400mm | 400mm/2X | 600mm/s |
| Y Axis | 300mm | 300mm/2Y | 300mm/2Y | 300mm/2Y | 600mm/s |
| Z Axis | 100mm | 100mm | 100mm | 100mm | 400mm/s |
| R Axis | 360° | 360° | 0 | 360° | ±0.05° Error |
| Weight | 58Kg | 68Kg | 75Kg | 85Kg | Customized |
| Size | 600*750*850mm | 800*750*850mm | 850*750*850mm | 1000*750*850mm | To order |
Shenzhen Zhongtu Automation Technology Co., Ltd. is an automation equipment enterprise integrating R&D, design, manufacturing, debugging, and after-sales service. Established in 2015, we specialize in:
Direct from manufacturer pricing and quality control
Reduce overall production costs through automation
Improve automation and information levels
Enhance product yield and consistency
| Pre-Sale | In Sale | After Sale |
|---|---|---|
|
|
|
Professional automation machine manufacturer based in Guangdong, China since 2015 with 11-50 employees.
Pre-production samples and final inspection before shipment ensure consistent quality.
Soldering machines, precision spot welding machines, glue dispensers, and screw machines.
Professional service, high performance equipment, and competitive pricing for customer success.
