製品詳細
起源の場所: 中国
ブランド名: ZT
証明: CE, ISO, RoHS
モデル番号: ZT-HXJ441-R
支払いと送料の条件
最小注文数量: 1セット
価格: USD 3100-3500/SET
パッケージの詳細: 木製の箱
受渡し時間: 15-30日
支払条件: t/t
供給の能力: 100セット/月
軸: |
4 |
仕様: |
100*78*85cm |
寸法: |
35 x 25 x 15cm |
はんだ付けロボット: |
PCBの溶接ロボット |
電子部品: |
電子自動溶接機 |
電力源: |
電気 |
はんだごて: |
高品質の溶接鉄 |
空気源: |
0.4-0.6MPa |
兵士 ロバート: |
溶接 ロバート PCB |
溶接流容量: |
100ml |
溶接流の種類: |
液体 |
軸: |
4 |
仕様: |
100*78*85cm |
寸法: |
35 x 25 x 15cm |
はんだ付けロボット: |
PCBの溶接ロボット |
電子部品: |
電子自動溶接機 |
電力源: |
電気 |
はんだごて: |
高品質の溶接鉄 |
空気源: |
0.4-0.6MPa |
兵士 ロバート: |
溶接 ロバート PCB |
溶接流容量: |
100ml |
溶接流の種類: |
液体 |

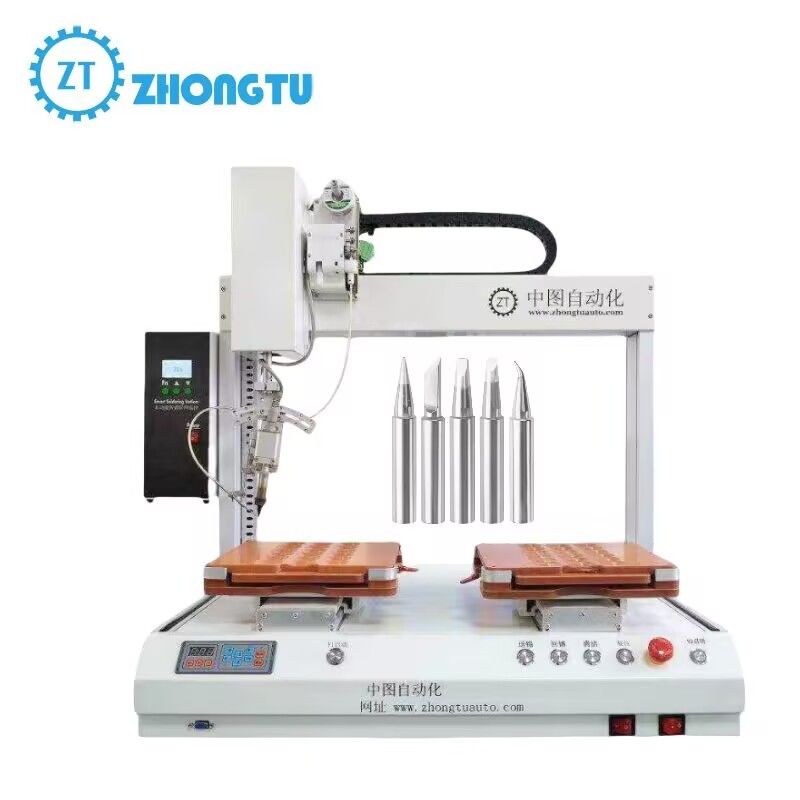

Automatic Customization Soldering Machine for PCB Board Robotic Soldering Machine
This kind of automatic soldering machine can be very widely applied in the electronics production.
This kind of automatic soldering machine with double working stations can support different soldering work at the same time, which is quite efficient but precise and accurate.
It is especially suitable for mixed circuit boards, heat sensitive components, and sensitive devices in the SMT back-end process. Welding, widely used in PCB board welding line, charger plug welding, connector soldering, DC end tin, LED light strip connection and other fields.
Automatic soldering robots replace manual soldering to improve work efficiency and improve solder quality.
Overall, this machine is a vital asset for modern manufacturing.
Product Parameter
|
Name:
|
Automatic Soldering Robot
|
Place of Origin:
|
ShenZhen, China
|
|
|
Applicable Industries:
|
Manufacturing Plant, SMT , DIP
|
Key Selling Points:
|
Automatic
|
|
|
Video outgoing-inspection:
|
Provided
|
Weight (KG):
|
65Kg
|
|
|
Marketing Type:
|
New Product 2024
|
Voltage:
|
220/110V 50~60Hz
|
|
|
Warranty period:
|
1 Yea
|
Dimensions:
|
850*750*850mm
|
|
|
Warranty of core components:
|
3 Years
|
Solder Wire:
|
0.6~1.5mm solder wire
|
|
|
Core Components:
|
PLC
|
Temperature Accuracy
|
±3°
|
|
|
Power:
|
680W
|
Solder Feeding Speed
|
1~50mm/s
|
|
|
Current:
|
5A
|
Repeate Accuracy
|
±0.02mm
|
|
|
Model
|
ZT-HXJ041R
|
ZT-HXJ441-R
|
ZT-HXJ4411-02
|
ZT-HXJ4411-02R
|
Fixture Customization
|
|
Solder Power
|
200W
|
200/400w 600W
|
200/400W
|
200/400/600W
|
Need
|
|
Heating Temperature Range
|
0-550ºC
|
||||
|
Machine Axis Number
|
4axis
|
4axis
|
4axis
|
5axis
|
Max moving speed
|
|
X Axis
|
400mm
|
400mm
|
400mm
|
400mm/2X
|
600mm/s
|
|
Y Axis
|
300mm
|
300mm/2Y
|
300mm/2Y
|
300mm/2Y
|
600mm/s
|
|
Z Axis
|
100mm
|
100mm
|
100mm
|
100mm
|
400mm/s
|
|
R Axis
|
360°
|
360°
|
0
|
360°
|
±0.05° Error
|
|
Temperature Errors
|
±2°
|
||||
|
Tin Wire Diameter
|
φ0.6mm-1.5mm
|
||||
|
Teaching File Capacity
|
256MB, up to 999 files, single file up to 1000 points
|
||||
|
Air Pressure
|
4-5kg/cm²
|
||||
|
Weight(Kg)
|
58Kg
|
68Kg
|
75Kg
|
85Kg
|
Customized
|
|
Size(mm)
|
600*750*850
|
800*750*850
|
850*750*850
|
1000*750*850
|
To order
|
Detail Photos:
Our advantage
Our Services:
|
Pre-Sale
|
In Sale |
After Sale |
|
1.Product Introduction,
2.Technical Communication, 3.Remote consulting service.
|
1. Show the product,
2. Explain in detail how to use the product. 3. Answer the questions raised by customers. |
1.Support video service.
2.The whole equipment is guaranteed for 1 year;
3.The guide rail/motor/control parts is guaranteed for 3 years.
|
1. Who are we?
We are based in Guangdong, China, start from 2015, There are total about 50-200 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
3. What can you buy from us?
Soldering machine,Precision spot welding machine,Glue dispenser,Screw machine
4. Why should you buy from us not from other suppliers?
With ultra professional service and skill to provide high performance but competitive price goods, the customer's success is our own success.
5. What services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,CPT; Accepted Payment Currency:USD,EUR,HKD,CNY; Accepted Payment Type: T/T,PayPal,Cash;
6. What is your Warranty for the product? How do you carry out it?
We provide 1 Year Warranty for unit machine and 3 years warranty for main board.More details pls contact me.
7. May I buy samples from you?
Yes! You are welcome to place sample order to test our superior quality and service.
8. Are you just trading company or factory?
We are professional manufacturer for automation machine since 2015.
